無縫氣瓶與配件

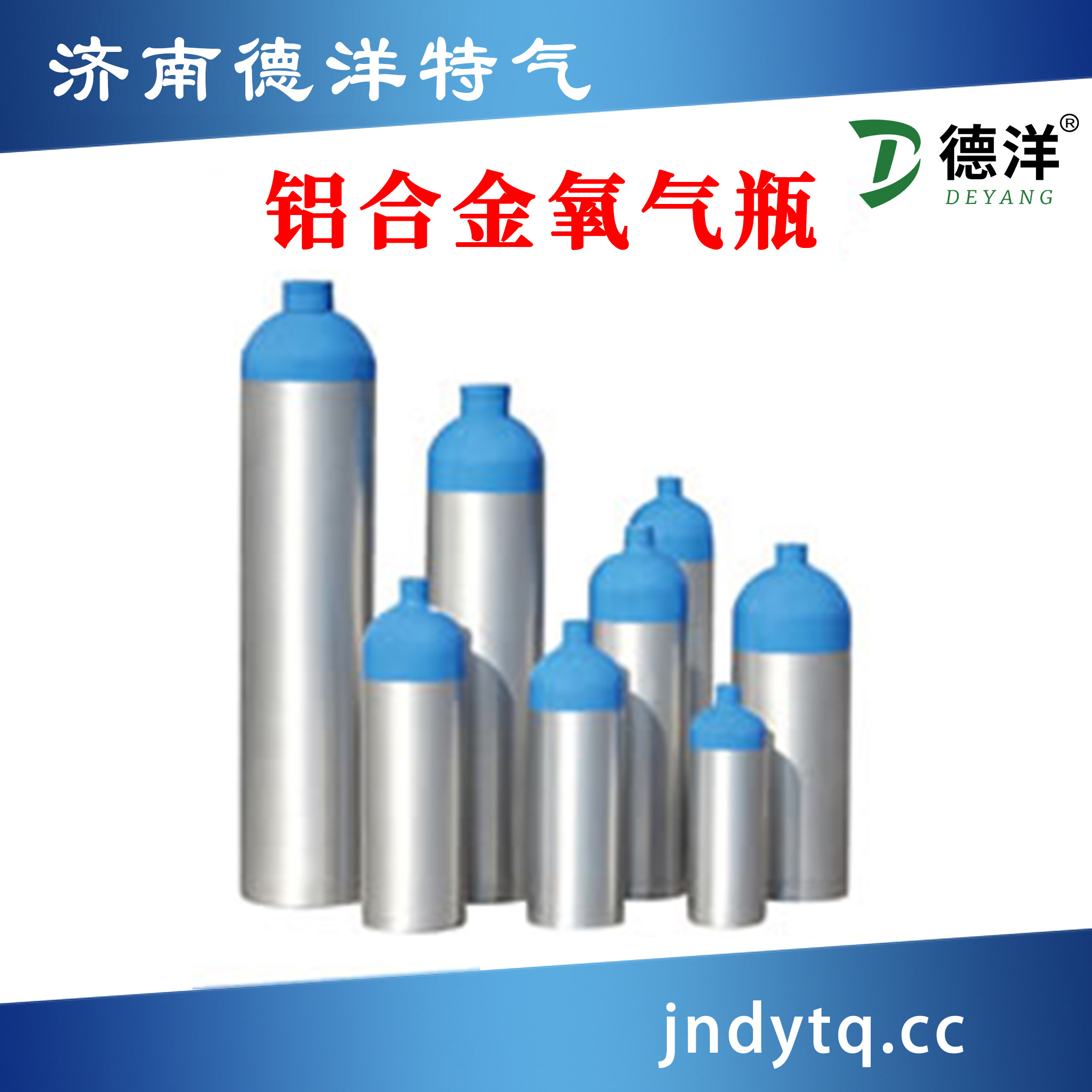

鋁合金氣瓶

工業用標準氣瓶(Industrial Standard Gas Cylinder)
品號 Part No.	型號 Model	外徑 Outside Diameter		容積 Water Capacity		壁厚 Wall Thickness		工作壓力 Service Pressure		重量 Weight		高度 Length
品號 Part No.	型號 Model	mm	in	Lts	Cu in	mm	in	bar	psi	kgs	lbs	mm	in
I1	LWH82-0.7-15	82	3.2	0.7	42.7	4.2	0.2	150	2175.6	0.9	2.0	235	9.3
I2	LWH89-0.5-15	89	3.5	0.5	30.5	4.5	0.2	150	2175.6	0.8	1.8	167	6.6
I3	LWH89-0.7-15	89	3.5	0.7	42.7	4.5	0.2	150	2175.6	0.9	2.0	208	8.2
I4	LWH89-1.0-15	89	3.5	1.0	61.0	4.5	0.2	150	2175.6	1.2	2.6	269	10.6
I5	LWH89-1.4-15	89	3.5	1.4	85.4	4.5	0.2	150	2175.6	1.5	3.3	350	13.8
I6	LWH108-2.0-15	108	4.3	2.0	122.0	5.5	0.2	150	2175.6	2.1	4.7	340	13.4
I7	LWH140-4.0-15	140	5.5	4.0	244.1	7.1	0.3	150	2175.6	4.2	9.3	410	16.1
I8	LWH140-5.0-15	140	5.5	5.0	305.1	7.1	0.3	150	2175.6	4.9	10.8	500	19.7
I9	LWH140-6.0-15	140	5.5	6.0	366.1	7.1	0.3	150	2175.6	5.6	12.3	580	22.8
I10	LWH140-7.0-15	140	5.5	7.0	427.2	7.1	0.3	150	2175.6	6.3	13.9	662	26.1
I11	LWH140-8.0-15	140	5.5	8.0	488.2	7.1	0.3	150	2175.6	7.4	16.3	741	29.2
I12	LWH159-6.3-15	159	6.3	6.3	384.5	8.0	0.3	150	2175.6	6.2	13.7	495	19.5
I13	LWH159-8.0-15	159	6.3	8.0	488.2	8.0	0.3	150	2175.6	7.4	16.3	605	23.8
I14	LWH159-10.0-15	159	6.3	10.0	610.2	8.0	0.3	150	2175.6	8.8	19.4	730	28.7
I15	LWH203-16.0-15	203	8.0	16.0	976.4	10.3	0.4	150	2175.6	15.6	34.4	746	29.4
I16	LWH203-20.0-15	203	8.0	20.0	1220.5	10.3	0.4	150	2175.6	17.0	37.5	900	35.4
I17	LWH232-20.0-15	232	9.1	20.0	1220.5	11.7	0.5	150	2175.6	19.6	43.2	714	28.1
I18	LWH232-30.0-15	232	9.1	30.0	1830.7	11.7	0.5	150	2175.6	26.0	57.3	1008	39.7
I19	LWH232-40.0-15	232	9.1	40.0	2441.0	11.7	0.5	150	2175.6	32.0	70.5	1300	51.2
I20	LWH250-50.0-20	250	9.8	50.0	3051.2	16.7	0.7	200	2900.8	55.0	121.3	1500	59.1
